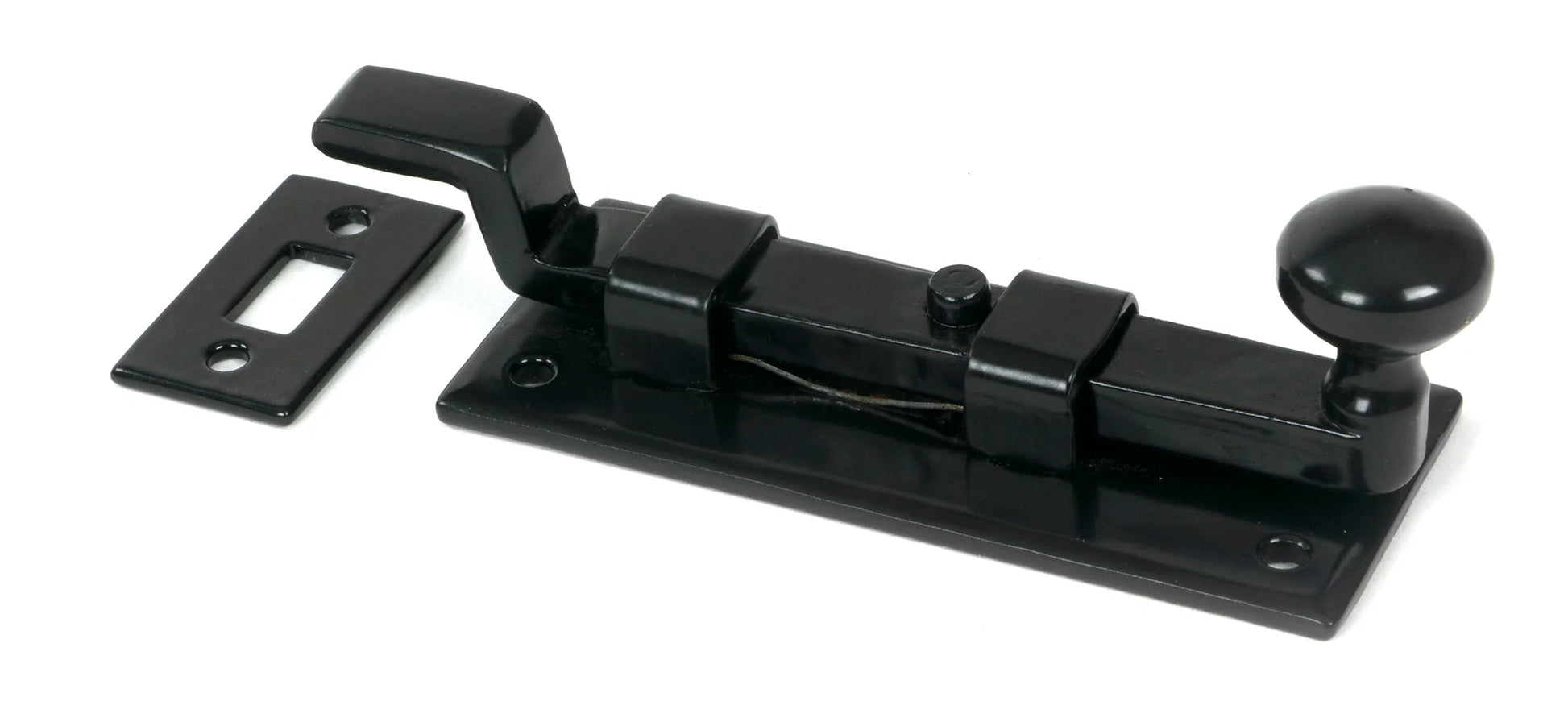

Cranked Knob Bolt

We have an extensive range of door, window, French, and flush bolts, ranging from 4 to 12.

• A multi-purpose bolt that can be used on windows, doors, or for other purposes due to a variety of keeps supplied with the product.
• Features a simple round knob end.
• Can be used horizontally or vertically due to the strong spring mechanism incorporated into the bolts.
• Supplied with matching SS wood screws.

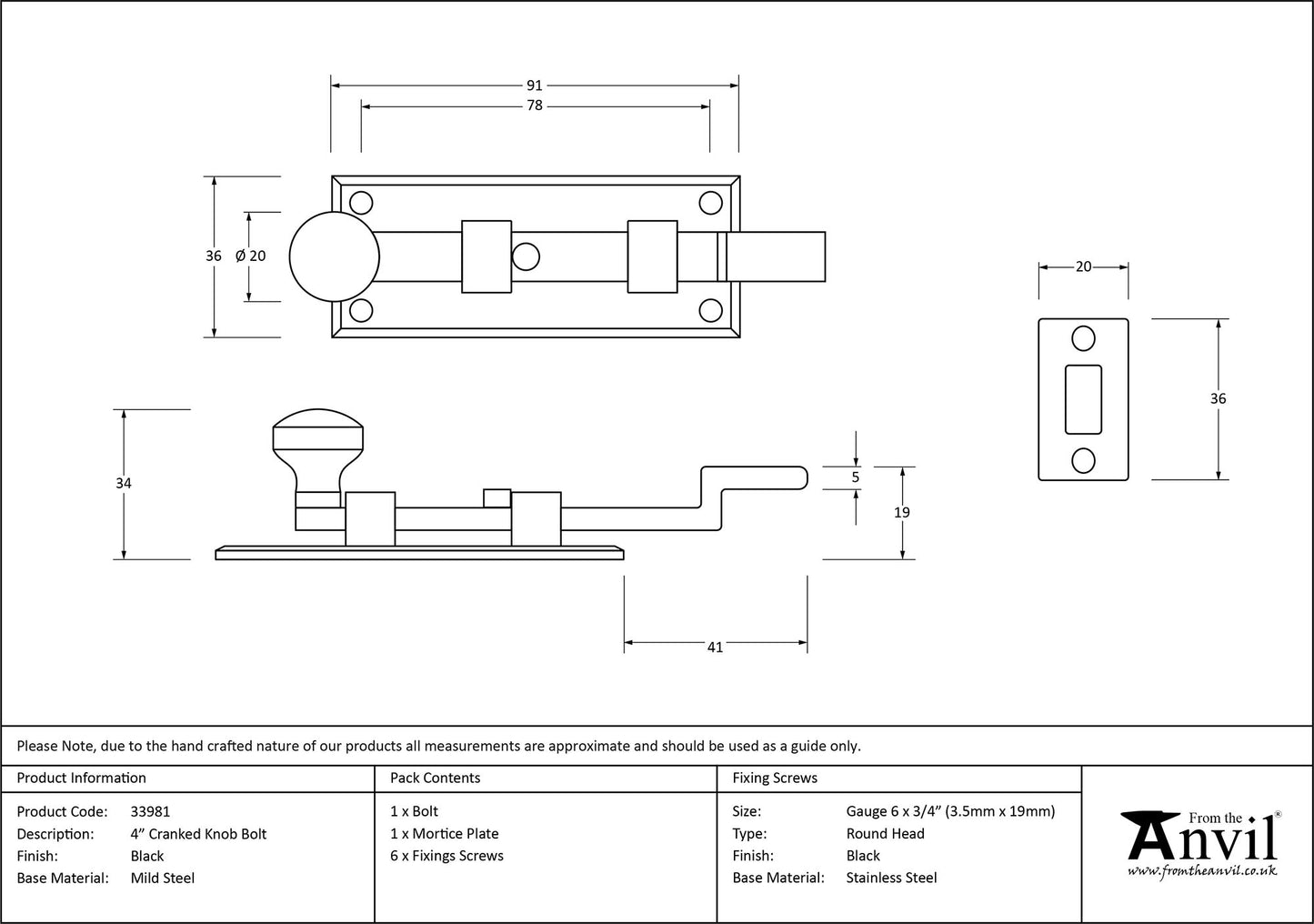

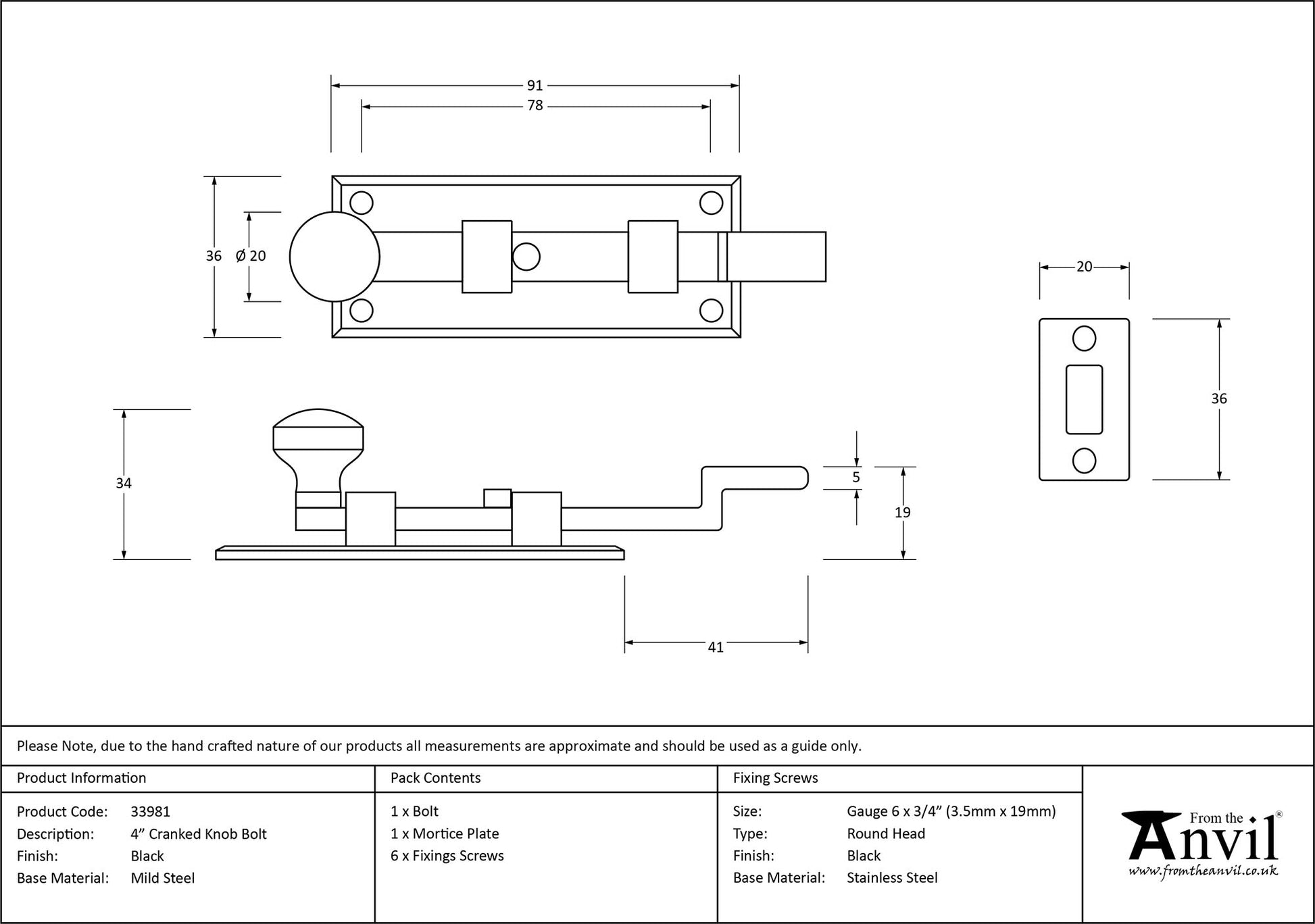

Fixing Plate: 91mm x 36mm x 3mm
Receiver Plate: 33mm x 20mm x 2mm
Throw: 41mm
Crank Projection: 19mm
